GALERIA FORUMISTILOR

Post by root »

Aici le pozam si le prezentam :mrgreen:

User avatar
SOLO
Moderator
Posts: 1769
Joined: 25 Sep 2008, 22:42
Location: Milan

Re: Forum Software Gallery

Post by SOLO »

Jucariile mele ( unele pentru putin timp ) :

Magneplanar 12/qr
Threshold S/200
Conrad Johnson PV-11 (in proba )
Audio Analogue Rossini ( in proba )
Cayin CDT-23 ( in proba )





Am uitat sa precizez covorul hi-end :mrgreen:

solo
Every foot from the wall adds 1000$ to the sound
*Doneaza pentru libertatea si sustenabilitatea forumului

User avatar
Micky
Posts: 114
Joined: 04 Oct 2008, 11:49
Location: Eugene, OR, US

Re: Forum Software Gallery

Post by Micky »

Aici este sistemul meu compus din:
Pick-up: TESLA NC 430 ne modificat cu doza Ortofon 320
Preamplificator de pick-up: NAD PP2
CD player: Accuphase DP-77
Amplificator integrat: Accuphase E-213
Casetofon: Technics RS-BX 727
Interconect: Nordost Baldur(RCA) + DIY(RCA+XLR)
Cablu de boxe: DIY (din sarma de la Siltech G5 Forbes Lake + spade WBT0680 Cu)
Cablu de alimentare: Van den Hul
Incinte acustice: USHER BE-718
Standuri boxe: USHER
Rack: DIY
Aparat de curatat viniluri: OKKI NOKKI Cadence
Casti: AKG K701 si SENNHEISER HD 520 II
Attachments
sistem 08.2008.JPG

User avatar
SOLO
Moderator
Posts: 1769
Joined: 25 Sep 2008, 22:42
Location: Milan

Re: Forum Software Gallery

Post by SOLO »

Foarte frumos Micky , felicitari . Daca nu ma insel ai o camera dedicata auditiei - foarte frumos aranjata de altfel - si asta trebuie sa fie super . Rack-ul este o frumusete , chiar mult mai "atragator" decat altele ( nume grele ) aflate in comert . DP-77 ala mi-ar place si mie :mrgreen:

solo
Every foot from the wall adds 1000$ to the sound
*Doneaza pentru libertatea si sustenabilitatea forumului

User avatar
momolo
Moderator
Posts: 14344
Joined: 02 Oct 2008, 10:11
Location: Bucuresti

Re: Forum Software Gallery

Post by momolo »

Micky, fain rack-ul DIY !

Sunt foarte curios de boxele tale, USHER B-718. Prin Italia sunt deja de legenda, au starnit multe discutii si exista posesori fanatici care jura ca nu le vor abandona niciodata, ca vor sa fie ingropati cu incintele astea! :D

Si foarte laudate prin presa de specialitate, niste incinte care trebuiesc ascultate!
"Tinereţea este o noţiune, biologia un adevăr. Ele împreună dau dimensiunea existenţei"(Geo Bogza)

User avatar
LEKTOR
Posts: 1774
Joined: 05 Oct 2008, 16:08
Location: Audiofilsburg

Re: Forum Software Gallery

Post by LEKTOR »

Descriu mai jos primul meu sistem pe lampi, voi mai reveni cu alte setupuri - mai vintage,mai noi,etc


SACD TUBE PLAYER pe iesirea de tube in ampul integrat pe tuburi STP 80 apoi in boxe ca biwired pt medii si inalte / apoi din SACD TUBE PLAYER pe iesirea de solid state in monoblocuri pe tuburi SP80 apoi in boxe ca biwired pt woofere

SHANLING SCD-T200 SACD PLAYER - dar in stereo -

Features
• Elegant and sturdy design.
• Top loading, heavy duty aluminium housed drive mechanism.
• Sony KHM-280AAA bare head laser drive in a custom aluminium housing.
• Top grade Sony CXD2753R SACD decoding IC.
• Burr-Brown PCM1738 DAC (digital to analog converter) up to 24 bit / 96 kHz (SACD).
• Four Burr-Brown OPA627 op-amps for I/V switching and two OPA2604 op-amps for filtering and output stages.
• Analog circuitry uses 2x 6N3P dual triodes valves.
• With direct and valve line outputs, two channel.
• 100 step digital electronic volume control with setting stored during power off.
• Digital coaxial output (Note due to copyright protection on SACD's, there is no digital output when these are playing).
• Adjustable display brightness.
• Valve (2x 6N3P dual triode) headphone amplifier output with phono socket.
• 2 year parts and labour warranty (12 months on valves, remote & laser).
Accessories Supplied
• Metal facia full function remote control with batteries.
• Demonstration hybrid SACD.
• Cleaning chamois.
• Cotton gloves.
• Power cable.
• Instruction manual.
Specifications
• Line level output: 0 - 2.0 V
• Frequency Response: 5 Hz - 45 kHz ± 0.5 dB
• S/N Ratio: 118 dB
• Distortion: < 0.002 (@ 1 kHz)
• Dynamic Range: 115 dB
• Crosstalk: > 100 dB
• Power consumption: < 70 W
• Voltage: 240V / 50 Hz
• C-Tick Approved
• L x W x H: ~ 430 x 300 x 145 mm (without cables)
• Weight: ~14 kg

Modificarile aduse

• Power Supply:13 Ultra-fast, soft recovery Hexfred (International Rectifier) and Fred (Vishay-Telefunken) diodes.
• 2 Black Gate Standard Series electrolytic capacitors.
• 4 Auricap metallized polypropylene power supply bypas capacitors.
• -2 large 150uf 350V Black Gate VK Series capacitors are installed in the power supply. These caps are huge and sell for $35.00 each.
• Vacuum Tube Output Stage: 18 Audio Note Tantalum 0.5- & 1-watt signal path resistors
• 4 Black Gate Standard Series electrolytic output coupling capacitors
• 2 Black Gate C Series capacitors
• 2 Auricap metallized polypropylene coupling bypass capacitors.
• 1 pair of Northern /Western Electric 396a tubes – output stage
• 1 pair of Northern/Western Electric 396a tubes – headphone output stage
• DH Labs 99.99% pure silver Teflon tape wrap (Air Matrix style) jacketed solid-core wire is added to the outputs.
• Solid-State (Direct) Stage: 22 Japanese Riken Ohm 0.5-watt signal-path Carbon resistors with gold-plated leads
• 4 Black Gate Standard Series electrolytic output coupling capacitors
• 10 Rel-Cap RTE 2% radial lead polystyrene signal caps (square case, epoxy encapsulated)
• 2 of our custom-made adaptor PC boards are added utilizing the ultra high performance Burr-Brown OPA627 op amps for the main output buffer.
• DH Labs 99.99% pure silver Teflon tape wrap (Air Matrix style) jacketed solid-core wire is added to the outputs.
• Miscellaneous: 2 sheets of Soundcoat dampening internal chassis
• TRT silver-content Wonder Solder used throughout
• Audiocom Superclock II
• Our proprietary power supply for the Superclock
• Comprehensive Bybee Filter treatment
• Goertz Pure Solid-silver ultra output terminals


SHANLING SP80 MONOBLOCURI

Features
• Dual monoblock valve amplifier in push-pull configuration.
• Stylish appearance to match CD-T100C CD Player or SCD-T200C SACD Player.
• Operating functions on fluorescent display.
• Synchronised volume controls via remote control.
• Utilises 4x EL34 output valves and 1x 6N8P & 1x 6N9P valves.
•Accessories Supplied
• Metal facia full function remote control with 2x AAA batteries.
• Power cables.
• Synchronisation link cable.
• Instruction manual.
Specifications
• Output Power: 2x 50W RMS (8 Ohms)
• Frequency Response: 18 Hz - 30 kHz (&plusmn; 0.5 dB)
• S/N Ratio: > 95 dB
• Distortion: < 1%
• Input Sensitivity: 550 mV
• Input: 1x RCA per unit
• Output Impedance: 4 / 8 Ohm via twin terminals.
• Voltage: 240V / 50 Hz
• L x W x H: ~ 460 x 204 x 188 mm (each, without cables)
• Weight: ~16 kg (each)


Modificari

• replacement of four critical preamp stage, dual op amps with state-of-the-art, reference grade Burr-Brown OPA627s in our custom adaptor pcbs
• 2 sheets of Soundcoat damping internal chassis
• replacement of the "stock" Chinese input, driver and power tubes with upgraded 1x Russian Electro-HAamonix 6SN7 type, 1x Philips JAN-6188 (6SL7) type and 2x Mullard E34L power tubes (2 MP)
• 10 Black Gate C and FK Series capacitors are added in the power supply
• 4 Auricap metalized polypropylene bypass capacitors are installed in the power supply
• 16 MultiCap PPFX-S polypropylene film and tin foil coupling caps as well as MultiCap RTX polystyrene film and tin foil coupling bypass capacitors
• 48 Japanese-made Audio Note 0.5-, 1- and 2-watt signal path Tantalum film resistors are added
• 2' of DH-Labs 99.99% pure silver 23awg solid-core, eflon tape wrap jacketed, input wire
• Goertz Pure solid silver RCA input connectors
• 16 IR Hexfred ultra-fast soft recover rectifying diodes
• 2 SF4007 Vishay-Telefunken ultra-fast soft recovery diodes
• WBT silver solder used throughout



Shanling STP-80 Integrated tube amplifier

Elegance and polished appearance with full aluminum alloy body. Full function remote control and fluorescence screen display. Excellent and classical vacuum tube amplifier circuit. Hi-Fi operation amplifier OPA2604 as signal compensation and precise electron volume adjustment. Prepared power transformer and power filter function. Professional output transformer and Hi-End components. SS precise sound checkout technology with wide frequency. The sound representation: Big dynamic range, mellow low frequency, full mid-frequency and smooth high frequency, good music sense and charming timbre.



Outstanding Features:

The amplifier components are mounted in a stable, extremely rigid, full aluminum enclosure, ideal in damping characteristics as well as improving dissemination of heat
Stylish appearance of modern tube electronic design.
Unique fluorescent screen for function display.
Full function remote control.
PGA2311 precision volume control.
Classical circuitry delivers enthralling timbre

Specifications:

Output: 2 x 35W
Frequency response: 20Hz - 80kHz 1dB
THD: <0.1%
Output impedance: 4 Ohm, 8 Ohm
Signal-to-noise ratio: >93dB
Tubes: EL34 x 4, 6N3 x 3
Dimensions (W x H x D): 460 x 195 x 330 mm
Net weight: 20kg
Power consumption: Max. 400W

Modificari

a) 4 x Vishay-Telefunken SF4007 ultra-fast soft recovery diodes PLUS
8 x International Rectifier HEXFRED ultra-fast soft recovery diodes.

b) replace the "stock" input/driver tubes with premium NEW OLD STOCK Tungsol
2C51 tubes operation – featuring ultra low noise/ultra low microphony; we replace
the stock power tubes with premium Russian made Electro-Harmonix "Big Bottle”
6CA7’s.

c) 4 x AURICAP metalized polypropylene output coupling capacitors w/ 4
Rel-Cap TFT Teflon bypasses.

d) 2 x AURICAP metalized polypropylene input coupling capacitors.

e) 20 x Japanese RIKEN &frac12; and 1 watt "signal path" carbon resistors (gold-plated
leads)are added to the signal path.

f) 2 x Burr-Brown OPA627 op amp based, PCB assemblies (preamp stage) replace the
stock opamps.

g) 1 x pair of premium VAMPIRE “direct gold plated over copper body”
RCA female jacks.

h) 6 x WBT 0763 single output binding posts are added to the rear.

i) One sheet of SOUNDCOAT chassis damping material is cut & applied where
applicable to the chassis.

j) 10 x Black Gate power supply electrolytic capacitors are installed.

k) Two feet of DH LABS “Revelation series” pure 99.999% silver solid core input
signal wire, with teflon tape-wrap dielectric)

l) TRT Wonder-Solder used throughout.

BOXE - PARADIGM SIGNATURE S8 -

Paradigm Signature S8 Specifications

Design
6-driver, 3-way, MagneShield™

Crossover
3rd-order electro-acoustic at 1.8 kHz
2nd-order electro-acoustic at 250 Hz

High-Frequency Driver
25-mm (1 in) G-PAL™ gold-anodized pure-aluminum dome; rear damping chamber with ARB™ aperiodic resonance breakup fins and integrated heatsink; dual super neodymium ring magnets. Ferro-fluid damped/cooled. Die-cast heatsink chassis; IMS/SHOCK-MOUNT™

Midrange Driver
178-mm (7 in) MLP™ mica-loaded-polymer cone; gold-anodized solid-aluminum phase plug; 38-mm (1-1/2 in) voice coil; ATC™ asymmetric dual tapered-channel die-cast aluminum chamber; super neodymium ring magnet. Ferro-fluid damped/cooled. AVS™ die-cast heatsink chassis; IMS/SHOCK-MOUNT™

Bass Drivers
Four 178-mm (7 in) mineral-filled polypropylene cones; 38-mm (1-1/2 in) voice coils; AVS™ die-cast heatsink chassis; IMS/SHOCK-MOUNT™

Low-Frequency Extension*
28 Hz (DIN)

Frequency Response
On-Axis:
&plusmn;2 dB from 41 Hz – 22 kHz
30&ordm; Off-Axis:
&plusmn;2 dB from 41 Hz – 20 kHz


Sensitivity – Room/Anechoic
91 dB / 88 dB

Suitable Amplifier Power Range
15 – 500 watts

Maximum Input Power †
250 watts

Impedance
Compatible with 8 ohms

Internal Volume
74.9 L / 2.6 cu ft

Height, Width, Depth
123.2 cm x 21 cm x 52.1 cm
48-1/2 in x 8-1/4 in x 20-1/2 in
Floorstanding, adjustable spikes
(Height includes spikes and outrigger feet)

Weight
90.7 kg / 200 lb per pair

p.s Am furat pozele puse de mine pe alt forum

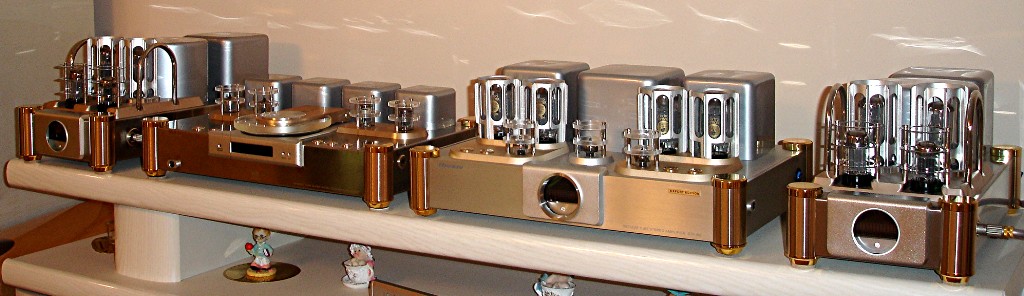

trebuie mod. size img]http://www.hi-fi.ro/fhifi/files/shan3.jpg[/img]

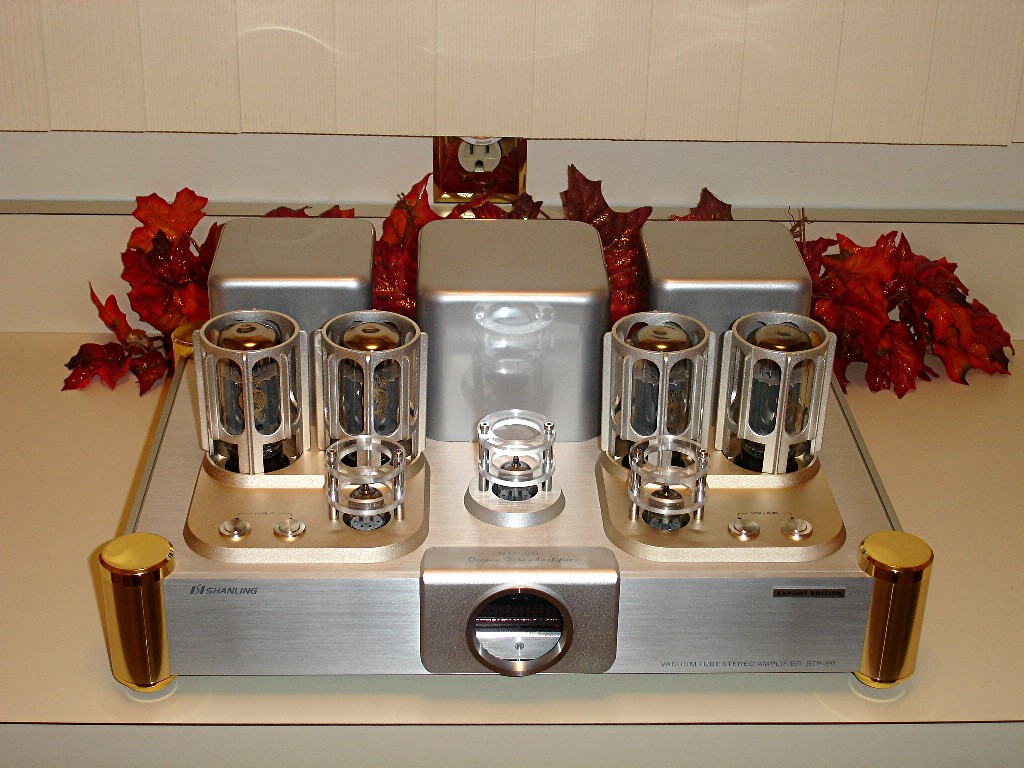

trebuie mod. size img]http://www.hi-fi.ro/fhifi/files/shan1.jpg[/img]

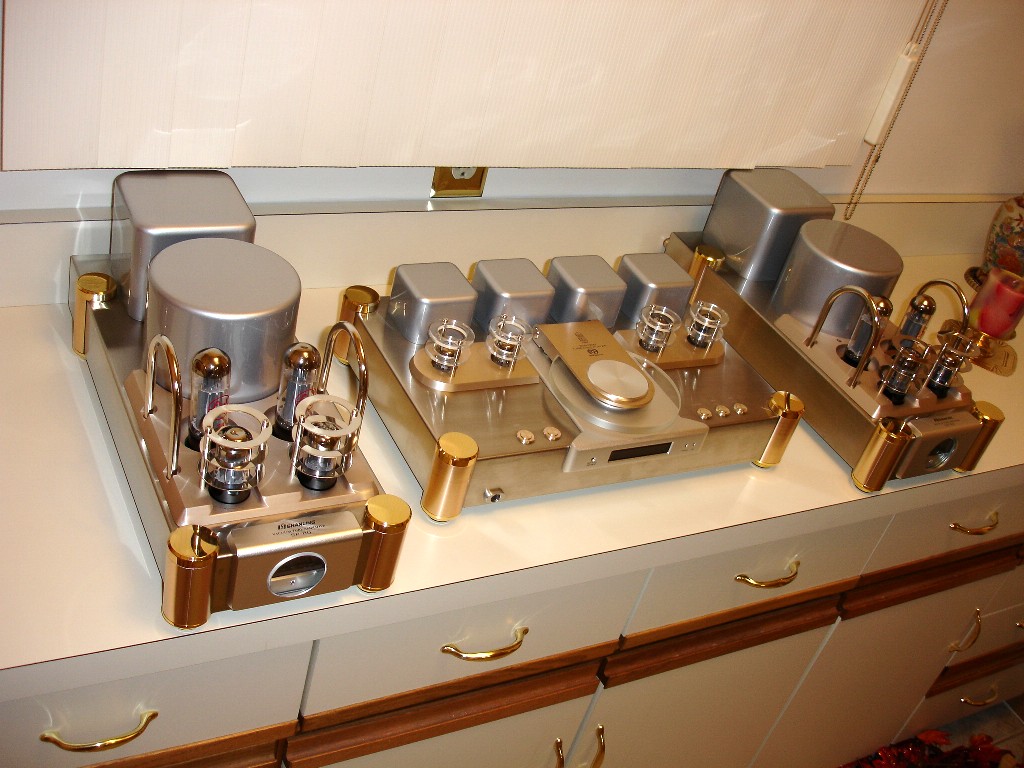

trebuie mod. size img]http://www.hi-fi.ro/fhifi/files/sha3.jpg[/img]

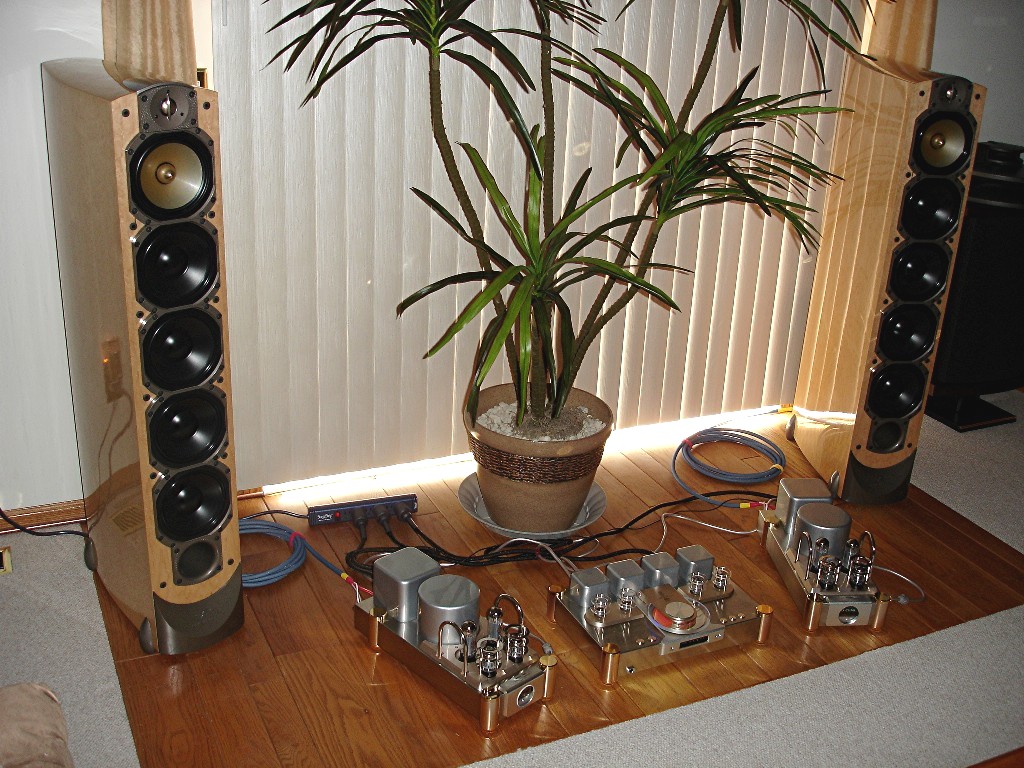

trebuie mod. size img]http://www.hi-fi.ro/fhifi/files/exo1.jpg[/img]
... living a vi(ntage)king analog lifestyle in a digital world ...

User avatar
SOLO
Moderator
Posts: 1769
Joined: 25 Sep 2008, 22:42
Location: Milan

Re: Forum Software Gallery

Post by SOLO »

Foarte simpatice lampasele . Multumit de SCD-T200 ?

PS. Ar fi indicat sa micsorezi putin pozele ( 600x400 ) si sa le incarci din nou , asta ca sa se incadreze cu forumul . Cand ai timp :wink:

solo
Every foot from the wall adds 1000$ to the sound
*Doneaza pentru libertatea si sustenabilitatea forumului

User avatar
Micky
Posts: 114
Joined: 04 Oct 2008, 11:49
Location: Eugene, OR, US

Re: Forum Software Gallery

Post by Micky »

momolo wrote:Micky, fain rack-ul DIY !

Sunt foarte curios de boxele tale, USHER B-718. Prin Italia sunt deja de legenda, au starnit multe discutii si exista posesori fanatici care jura ca nu le vor abandona niciodata, ca vor sa fie ingropati cu incintele astea! :D

Si foarte laudate prin presa de specialitate, niste incinte care trebuiesc ascultate!
Cu mare placere dar sa fie numai in week-end. Cat despre reputatia boxelor cred ca se exagereaza. Exista intr-adevar cateva puncte forte la aceste incinte dar sunt departe de a fi perfecte. Ai PM.

User avatar
LEKTOR
Posts: 1774
Joined: 05 Oct 2008, 16:08
Location: Audiofilsburg

Re: Forum Software Gallery

Post by LEKTOR »

o sa refac tot albumul cu audio si o sa le resize !
... living a vi(ntage)king analog lifestyle in a digital world ...

Kostas
Posts: 1479
Joined: 03 Oct 2008, 16:23

Re: Forum Software Gallery

Post by Kostas »

Micky a scris
Cat despre reputatia boxelor cred ca se exagereaza. Exista intr-adevar cateva puncte forte la aceste incinte dar sunt departe de a fi perfecte
Uite Momolo un tip obiectiv ,bravo, si mai are si rack fain. :)
"Muzica este un răspuns căruia nu i s-a pus nici o întrebare". - Nichita Stănescu

User avatar
momolo
Moderator
Posts: 14344
Joined: 02 Oct 2008, 10:11
Location: Bucuresti

Re: Forum Software Gallery

Post by momolo »

rack-ul lui Micky trezeste multa admiratie!
"Tinereţea este o noţiune, biologia un adevăr. Ele împreună dau dimensiunea existenţei"(Geo Bogza)

User avatar
SOLO
Moderator
Posts: 1769
Joined: 25 Sep 2008, 22:42
Location: Milan

Re: Forum Software Gallery

Post by SOLO »

Micky , vreau si eu unul !

solo
Every foot from the wall adds 1000$ to the sound
*Doneaza pentru libertatea si sustenabilitatea forumului

User avatar
tataee_titi
Posts: 40
Joined: 22 Oct 2008, 09:00
Location: Bucuresti
Contact:

Re: Forum Software Gallery

Post by tataee_titi »

Hop si eu cu troacele din dotare:

* amplificare Xindak MT-3 (alternativ Yarland FV34C III a.k.a. "micul schiabol chinezesc")
* cd player Primare D20
* boxe Elac FS-208.2
* interconect Neotech
* cablu boxe TDC Bi-metal Cu-Ag




kaav
Posts: 1708
Joined: 19 Oct 2008, 18:33

Re: Forum Software Gallery

Post by kaav »

:lol:

dinica
Posts: 25
Joined: 17 Oct 2008, 12:32

Re: Forum Software Gallery

Post by dinica »

Incerc sa adaug pozele sistemului meu dar imi apare urmatorul mesaj
"Imaginea trebuie să fie de cel puţin 0 pixeli lăţime, 0 pixeli înălţime şi cel mult 100 pixeli lăţime şi 100 pixeli înălţime. Imaginea trimisă are lăţimea de 354 pixeli şi înălţimea de 265 pixeli."
Totusi daca intru pe propritatile altor poze postate se pare ca acestea depasec maximul admis de 100 pixeli.
ex: 640px × 480px (una din pozele postate mai sus)
Ceva sfaturi de la moderatori. :D

Post Reply
